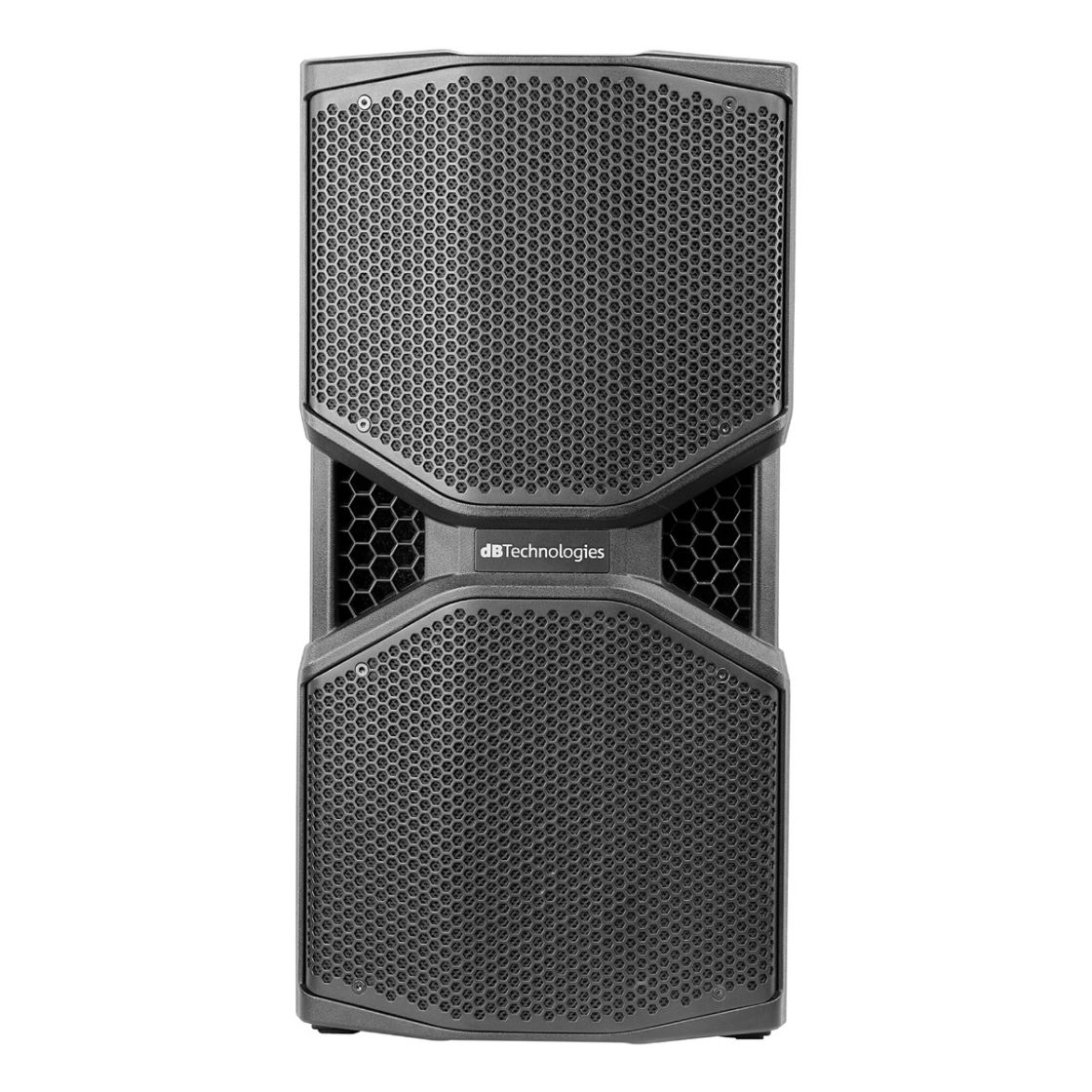

dB Technologies Opera Reevo 212

• Speaker Type: Quasi 3-Way Active Speaker

Acoustical data

• Frequency Response [-10dB]: 48 - 20.000 Hz
• Frequency Response [- 6dB]: 52 - 19.200 Hz
• Max SPL: 133 dB
• HF: 1" Exit CD, 1.75" v.c.
• Type HF: Compression driver
• Horizontal Directivity: 100°
• Vertical Directivity: 80°
• Horn: Asymmetrical Horn
• LF: 2x 12" Neo, 2.5" v.c.

Amplifier

• Amp Technology: Digipro G2 with SMPS
• Amp Class: Class D
• RMS Power: 1050 W (525W + 525W)
• Peak Power: 2100 W (1050W + 1050W)

Processor

• Controller: DSP 28/56 bit
• AD/DA Converter: 24 bit/48 KHz
• CrossOver Frequency: 1260 Hz
• Limiter: Peak, RMS, Thermal
• Advanced DSP Functions: Linear Phase FIR Filters

Input

• Signal Input: 1x Combo (XLR/Jack 6.3 mm) Line
• Signal Output: 1x XLR Male (True link)
• Controls: Gain (rotary); Preset (Flat, Playback, Wedge)

Mechanics

• Housing: Polyproylene
• Grille: Full grille
• Handles: 1 on left Side, 1 on Top
• Rigging Points: 2x M10 on Top + 1x M10 on Back
• Pole Mount: D36 mm
• Width: 345 mm (13.58 in)
• Height: 690 mm (27.17 in)
• Depth: 376 mm (14.8 in)
• Weight: 20.4 kg (44 lbs)
