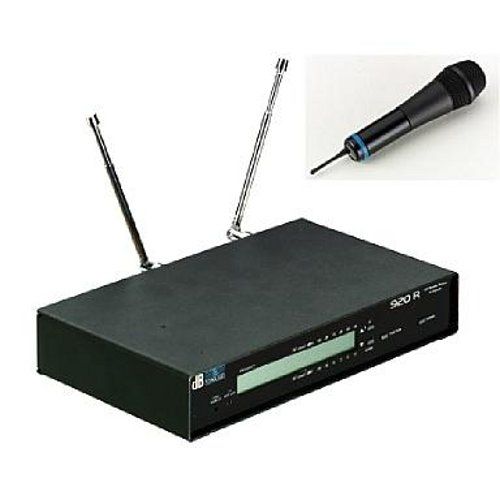

The PU 920 bases on the successful 910 series and provides improved performances like extended working range, pilot tone strength and frequency agility. The latest structure in SMD technology with components only 0.07 x 0.15 mm in size makes an excellent audio performance possible with the highest operating reliability and long battery life, due to low current consumption.
Frequency Band UHF Diversity Yes Frequencies 16 Switchable Frequencies Yes Band U-N: 801.100 - 819.650 Band U-UK: 854.900 - 864.950 Simultanious Systems In Use Up to 6 systems Handheld Transmitter
LED's 1x Battery Status Capsule TGX 58 ® Beyerdynamics capsul Characteristics Super Cardioid Housing Plastics/Metall Antenna Integrated Operation One Switch-System, Mute, On-Off Battery Type 2x AAA Battery capacity 8 h Pocket Transmitter
LED's Peak signal LED, Battery status LED Antenna external Operation Input gain control, On/Mute Signal Input 3.5 mm jack High Impedance Input Version 920 G Phantom Power 5 V Battery Type 9V block Battery capacity 8 h Receiver Unit
Display LCD backlight display LED's Digital squelch control LED Battery status LED Level Meters Frequency signal strength Audio status Detachable Antenna Yes Signal Output 1x XLR, sym. Power Socket External AC/DC Mechanics
Housing Metall Installation Standard 1 HU Rack Size 9.5 "
