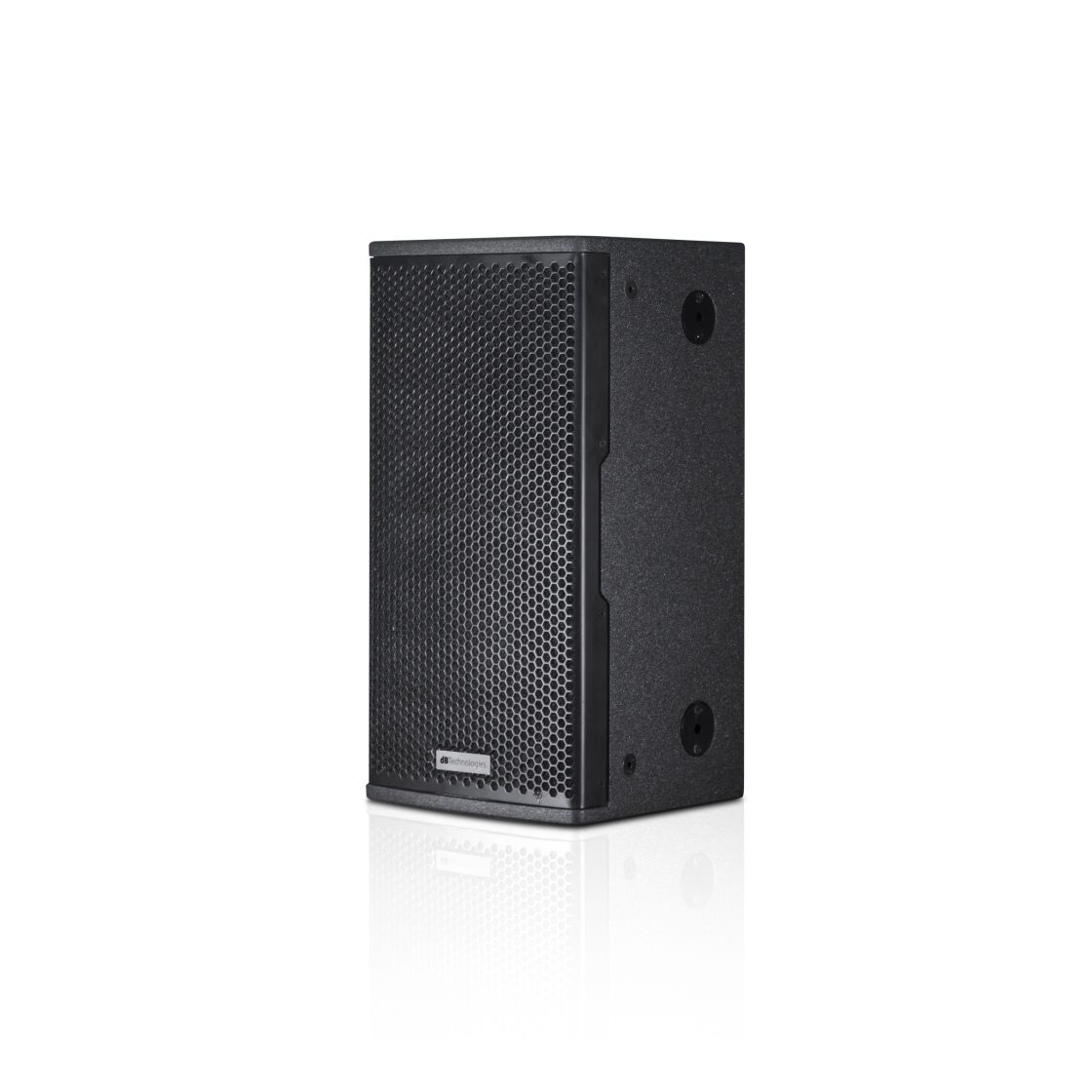

DB Technologies VIO X10

Aktivni zvučnik 10''
196.990,00 RSD
Povremeno na lageru, proverite dostupnost

PDV uračunat u cenu i nema skrivenih troškova

A feature-mix boosting high-end audio performance as well as advanced versatility. As a matter of facts, VIO X cabinets serve impressively as a stand alone PA system that can be stacked, flown or wall-mounted, as a full range PA or in combination with VIO S118 and VIO 118R subwoofers, but also act as the perfect side-fill, delay or stage monitoring system in larger VIO sound reinforcement applications.
The robust wooden enclosure allows horizontal use for monitoring purposes and is provided with a 36mm pole mount, and rigging points facilitating fixed installations with dedicated vertical and horizontal brackets.
All VIO X cabinets are powered by on board Digipro G3 900 W RMS providing majestic sound pressure levels in compact size and very limited weight. Advanced sound processing featuring Linear Phase FIR Filters allows VIO Xs to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.
On board presets let users adapt High Pass Filters to the chosen application, as well as dedicated EQ presets for Wedge or Fullrange mode. Last but not least, VIO X is equipped with RDNet port allowing monitoring and full remote control in real time via Aurora Net software (Windows and Mac).
Dodatne informacije
Proizvođač dB Technologies
Garancija 2
Specifikacija



Speaker Type

2 Way Active Loudspeaker

Frequency Response

[-10dB]73 - 21.400 Hz

Frequency Response

[-6dB]82 - 20.000 Hz

Max SPL

130 dB

HF

1x 1” v.c. 1.75"



LF

1x 10”, v.c. 2.5" Neodyium



Directivity

90° x 40°



Horn

Rotatable CD Horn



Amplifier

900 W RMS Class-D Digipro® G3



Cooling

Convection

Power Supply

Auto-range SMPS

Controller

DSP 28/56 bit



AD/DA Converter

24 bit/48 kHz

Limiter

Peak, RMS, Thermal



Processing

FIR Linear Phase Filters



Signal Input

1 x XLR balanced, 1 x RJ45 Link (RDNet)

Signal Output

1x XLR balanced, 1 x RJ45 Link (RDNet)

Power Socket

1x PowerCON TRUE1 In

1x PowerCON TRUE1 Out



Controles

1x Rotary Encoder (8x EQ, HPF presets)

1x Input sensitivity potentiometer

1x Mic / line switch



Special Features

Opto-isolated floating pre-amp

Housing

Wooden Cabinet, Polyurea painting



Handles

1x (top

Wedge Angle

Monitor Use 50°

Rigging points

12x M10 Thread + 4x Fast lock pins

Pole Mount

Ø36 mm

Width

280 mm (11.02 in)



Height

550 mm (21.65 in)



Depth

375 mm (14.76 in)



Weight

16.6 kg (36.59 lbs)
