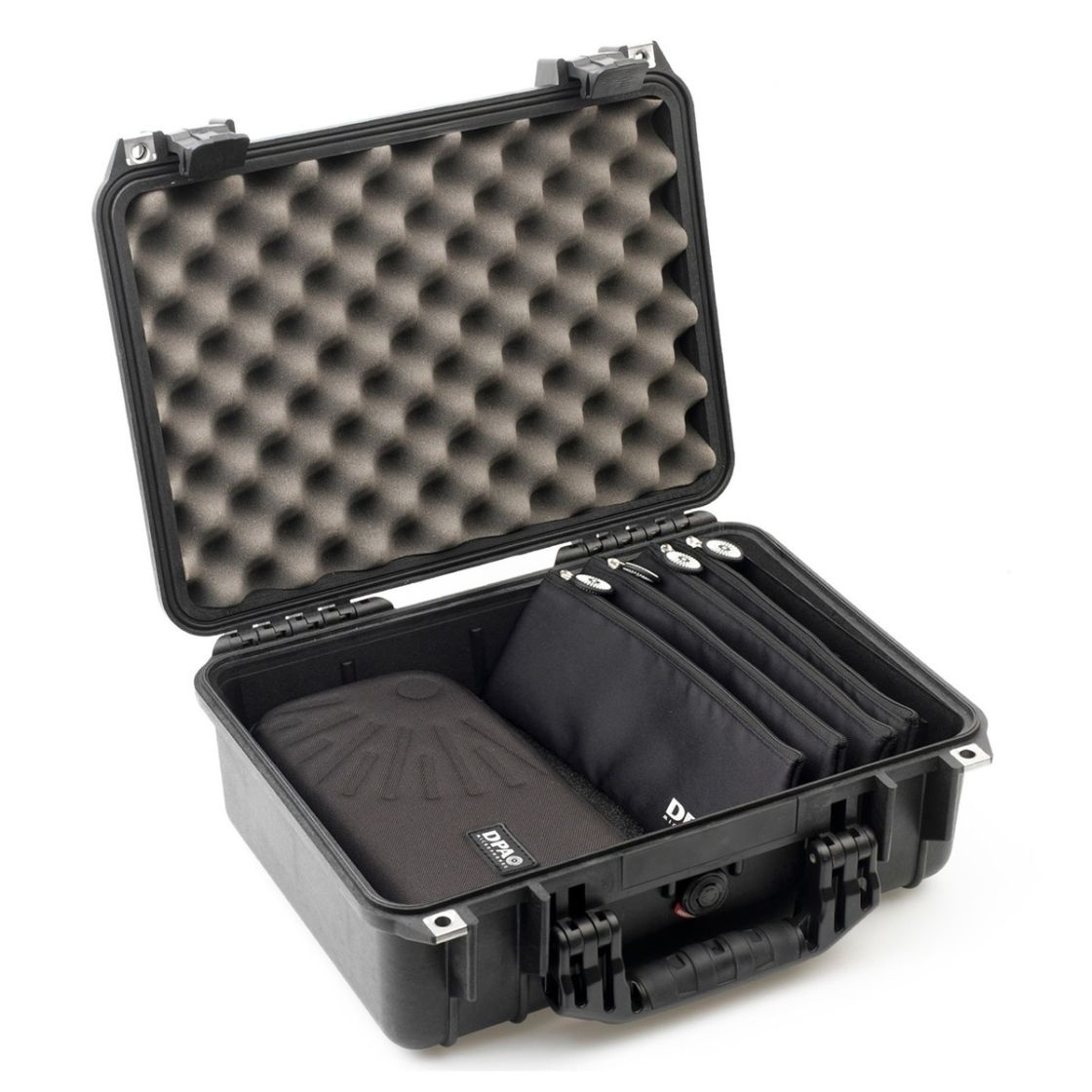

d:vote 4099 Classic Touring Kit, 4 Mics and accessories for Normal SPL

Ready for on-the-road-use for rental companies, musicians or theatres, the d:vote 4099 Rock Touring Kits offer a wide selection of microphones and accessories selected for typical use.

The close microphone placement to sound levels like violins or guitars requires microphones with normal sensitivity in order not to clip the following input stages.

A detachable lightweight cable from gooseneck to the XLR adapter makes it convenient to mount the mic on an instrument before connecting it. The extremely flexible cable does not weigh down the instrument. In case of cable break, service is easy and fast.

The low profile and unobtrusive design provides visual elegance along with uncompromised sound quality and accurate dynamics for the vast majority of instruments.

The unique and flexible clip-on system provides fast, stable and repeatable positioning. The mics can be easily positioned at different angles via the flexible gooseneck to match different radiation patterns and allow a variety of sound nuances. The d:vote 4099 Touring Kits include a 3-pin XLR phantom power adapter with belt clip.

Standard gooseneck length is 140 mm (5.5 in), which can be altered with the optional gooseneck extension unit, adding another 50% to the length, helping to achieve exactly the sweet spot for the instrument.

A wide range of connection adapters makes it possible to use DPA miniature microphones with all professional UHF, VHF or digital wireless system available plus 48 V Phantom.

Excellent frequency and phase response
Capable of handling extremely high SPLs
Compact, discreet size
Versatility in mounting options
Detachable cable and versatile gooseneck extender

Dodatne informacije

Proizvođač

DPA

Garancija

2

Specifikacija

Directional characteristics:	Supercardioid
Principle of operation:	Pressure gradient
Cartridge type:	Pre-polarized condenser
Frequency range:	20 Hz to 20 kHz
Frequency range, ± 2 dB, 20 cm (7.9 in) distance:	80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz
Sensitivity, nominal, ±3 dB:	6 mV/Pa; -44.5 dB re. 1 V/Pa
Equivalent noise level A-weighted:	Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL):	71 dB
Total harmonic distortion (THD):	<1 % up to 131 dB SPL peak
Dynamic range:	108 dB
Max. SPL, peak before clipping:	142 dB
Output impedance:	From MicroDot: 30 to 40 ohm, from DAD6001: 100 ohm
Cable drive capability:	300 m (984 ft) with DAD6001
Output balance principle:	Signal balanced with DAD6001 XLR adapter
Common Mode Rejection Ratio (CMRR):	> 60 dB at 50 Hz to 15 kHz with DAD6001 XLR adapter
Power supply:	Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power ±4 V with DAD6001 XLR adapter
Current consumption:	1.5 mA; 3.5 mA with DAD6001 XLR adapter
Connector:	MicroDot
Color:	Black
Weight:	33 g (1.16 oz)
Microphone length:	45 mm (1.8 in)
Cable length:	1.8 m (6 ft)
Polarity:	Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
Operating temperature range:	-40 °C to 45 °C (-40 °F to 113 °F)
Relative humidity:	Up to 90 %
Gooseneck, length:	140 mm (5.5 in)

DPA Microphones d:vote™ CORE 4099 Classic Touring Kit, 4 Mics
