Name: DTS PROFILO LED 200 CT
Brand: DTS
SKU: PROFILO LED 200 CT
Availability: OutOfStock

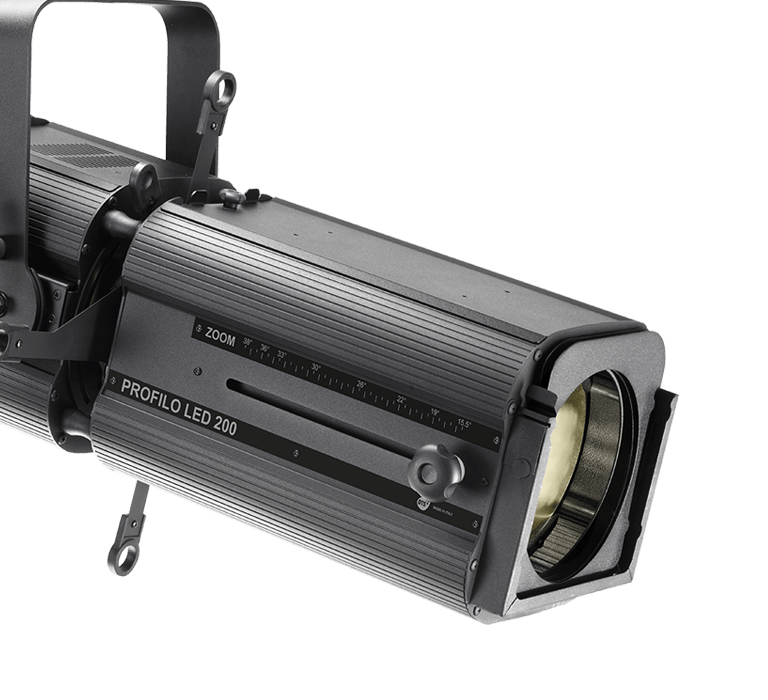

PROFILO LED 200 CT is a high-power LED-based profile spot contained in a strong and lightweight housing. The unit features an internal four-shutter removable shaping system, and a high-definition 15.5° to 38° linear zoom. The unit LED’s white color temperature is linearly tunable from 2700 K to 6500 K; a must in the most demanding applications, where a perfectly adjustable white color temperature is a key requirement. PROFILO LED 200 CT offers technical features that dramatically improve light quality and flexibility of use: CRI >90, flicker-free projection, DMX/RDM or manual control, noiseless operation, virtually zero maintenance costs, lower power consumption.

Dodatne informacije

Dodatne informacije
Proizvođač	DTS
Specifikacija	Output • Single high-power white LED with linearly tunable color temperature (2700 K - 6500 K) • CRI >90 • LED lifespan: 50,000 hours (70% lumen output) Optical group • 15.5°- 38° linear zoom; • High definition zoom lens with double optical condenser lens Gobos Gobo type B metal or glass • Ø external: 86 mm • Ø of image: 60 mm • Thickness: from 0,2 to 2 mm Control • DMX 512 / RDM or Manual control • 7 DMX channels (default); 2 DMX channels • 4-digit 7-segment LED display + 4 soft keys • Internal operating system updatable via DTS dongle firmware uploader Power supply • Full-range 100-240Vac 50-60 Hz • Power consumption: 200 W max Connections • DMX: XLR 5-pole In/Out panel connectors • Power supply: PowerCON TRUE1 In/Out panel connectors Internal safety devices Overvoltage and overtemperature circuits protection Operating temperature -10° / 40°C Physical • IP20 • Internal system with four removable shutters • Yoke featuring an exclusive sliding system with clutch for a wider tilt • Dimensions (LxHxD):704.4x338x319 mm (27.74''x13.32''x12.57) • Weight: 15 Kg (33 lbs) • Finishing: Black International certification CE certification Accessories included • ON BOARD _ 1 x Soft edge filter assembly (code 02TP0047) _ 1 x Filterframe Black finishing (code 02M00420.49) • IN THE BOX _ 1 x PowerCON TRUE1 female cable connector (code 0520P066) _ 1 x XLR 5 pins female cable connector (code 0508B147) _ 1 x XLR 5 pins male cable connector (code 0508B148) _ 4 x Shutter blade assembly (code 02TP0045) Accessories on request • Iris/Diaphragm (code 03.TA225) • Gobo holder (code 03.TA226) • “C” Clamp G60 - max. Load 50 Kg (code 0521A004) • Safety cable - 0.3x60 cm - max. capacity load 60 Kg (code 0521A010) • DTS dongle firmware uploader (code 03.LA.206) Shipping • Packaging: Carton box • Box size: • Box weight:
