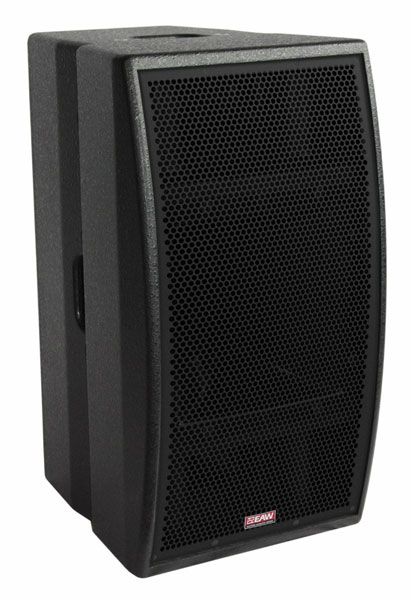

The KF364 premium 60°H x 45°V, 3-way loudspeaker packs more capability and application flexibility into an ultra-compact package. The KF364 consists of dual 10-inch woofers with 2.5-inch voice coils and one 1.4-inch exit coaxial mid-high compression driver with 3.5-inch MF voice coil and 1.75-inch HF voice coil. It is switchable between single-amp and bi-amp operation with a passive mid-high crossover engaged in bi-amp mode. The KF Series includes the option for permanent installation via multiple M10 permanent installation points. The integration of premium neodymium components, a co-axial mid/high frequency component and world-renowned crossover design into an adaptable enclosure offers unprecedented performance and utility. There is also the option to upgrade units in the field to the powered NT version. Add revolutionary EAW Focusing with the UX8800 Processor for the pinnacle of performance in any venue.
| Proizvođač | EAW |
|---|---|
| Garancija | 1 |
| Specifikacija | Subsystem: Transducer Loading LF 2× 10 in cone Vented MF 1× 1.4 in cone, 3.5 in Horn-loaded coil compression mid HF 1× 1.4 in exit, 1.75 in voice Horn-loaded coil compression driver Operating Mode: Amplifier Channels External Signal Processing Single-amp LF/MF/HF High pass filter Bi-amp LF, MF/HF DSP w/ EAW Focusing PERFORMANCE Operating Range: 64 Hz to 20 kHz Nominal Beamwidth: Horz 60° Vert 45° Axial Sensitivity (whole space SPL): LF/MF/HF 98 dB 64 Hz to 20 kHz LF 99 dB 64 Hz to 613 Hz MF/HF 111 dB 473 Hz to 20 kHz Input Impedance (ohms): Nominal Minimum LF/MF/HF 8 6.6 @ 124 Hz LF 8 6.4 @ 392 Hz MF/HF 8 6.7 @ 3650 Hz High Pass Filter: High Pass=>64 Hz, 12 dB/octave Butterworth Accelerated Life Test: LF/MF/HF 94 V 1100 W @ 8 ohm LF 78 V 750 W @ 8 ohm MF/HF 35 V 150 W @ 8 ohm Calculated Axial Output Limit (whole space SPL): Average Peak LF/MF/HF 128 dB 134 dB LF 128 dB 134 dB MF/HF 133 dB 139 dB |
