KLOTZ OT206PB Helogen free

Name: KLOTZ OT206PB Helogen free
Brand: KLOTZ
SKU: OT206PB
Price: 240 RSD
Availability: OutOfStock

Omnitrans kabl

240,00 RSD

Povremeno na lageru, proverite dostupnost

Detalji

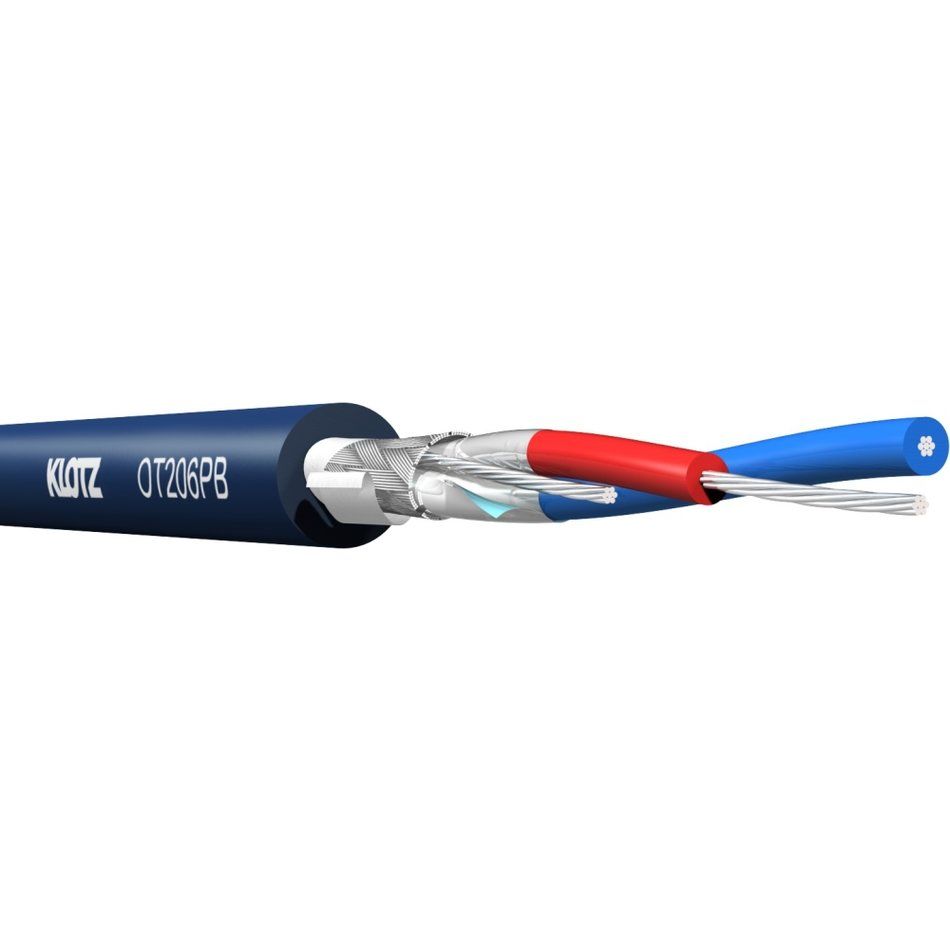

The sturdy digital 110 Ohm cable for the transmission of digital AES/EBU audio signals and digital DMX light control signals. The benefits of this cable are its very low capacitance and attenuation constant as well as extremely dense shielding: the requirements for interface-free connection over long distances. The sturdy and thick outer steath made of PUR allows the cable to be inserted into cable-ducts and stage cross-members quickly and easily.

Dodatne informacije

Proizvođač

KLOTZ

Specifikacija

construction

cond. construction	stranded tinned copper, 7 x 0.20 mm
cond. cross section	0.22 mm²
insulation	Foam-Skin-PE
shielding	AL/PET-foil + tinned stranded drain wire + tinned copper braid (coverage 85%)
outer jacket	PUR
overall diameter	6 mm

mechanics

min. bending radius	30 mm
working temperature	-40 °C / +85 °C
halogen-free	acc. to IEC 60754-1

electric

conductor resistance	< 85 Ω/km
characteristic impedance	110 Ω
attenuation [dB/100m]
1 MHz	2.3
3 MHz	3.9
10 MHz	6.9
insulation resistance	> 10 GΩ x km
test voltage
cond./cond.	1200 V
cond./cond.	500 V
