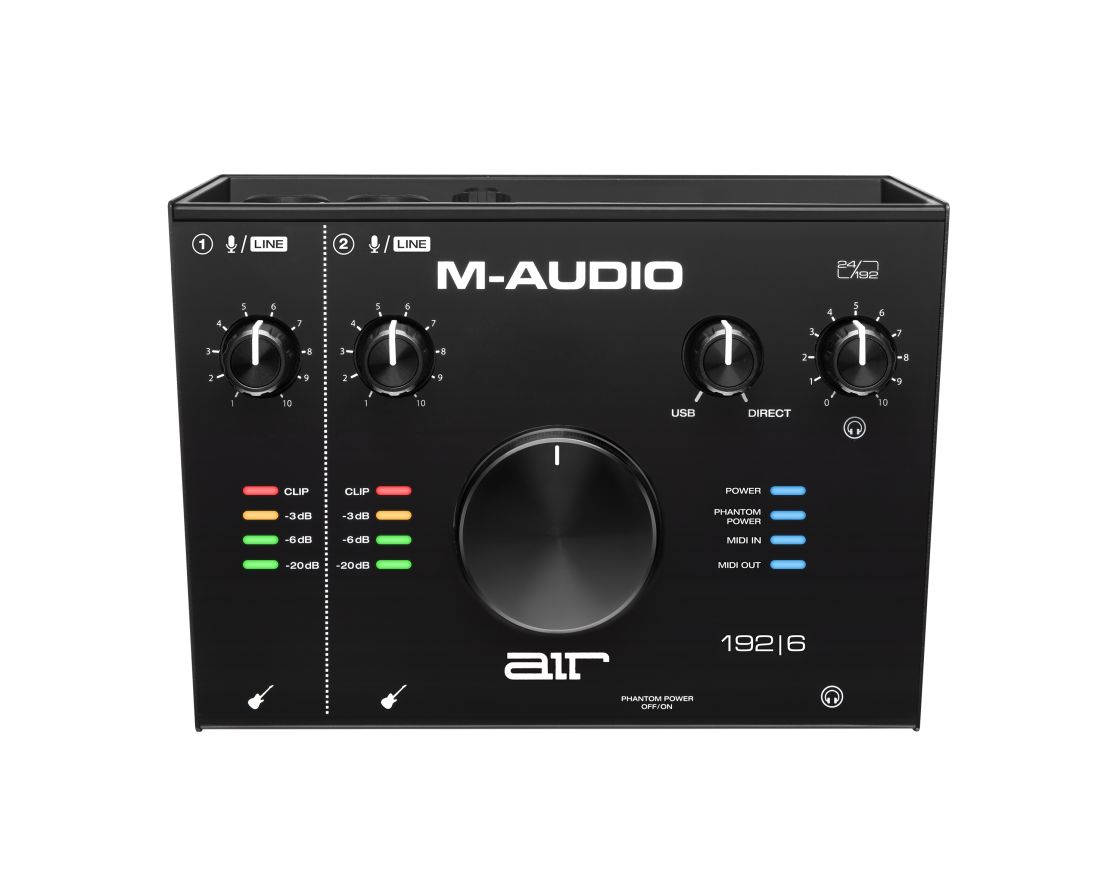

M-Audio AIR 192 I 6

Zvučna kartica
Cena: 15.900,00 RSD Redovna cena: 18.880,00 RSD
Povremeno na lageru, proverite dostupnost

PDV uračunat u cenu i nema skrivenih troškova

Key Features

24-bit/192kHz resolution for professional recording and monitoring

Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*

Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality

VU LED meters for dialing in the perfect level

Flexible inputs: (2) XLR+¼” TRS combo or ¼” instrument inputs

Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each

5-pin MIDI input/output for connecting virtually any external MIDI gear

Stereo ¼” outs; ¼” headphone out with independent level control

Rugged metal chassis; large central control for easy volume adjustment

USB/Direct knob for balancing between the input signal and the computer signal

*Round trip latency is dependent on buffer settings, and computer hardware.

Dodatne informacije
Proizvođač M-Audio
Specifikacija

Mic Input

1-2 (balanced XLR)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.1 dB)

DYNAMIC RANGE

104 dB (A-weighted)

SIGNAL-TO-NOISE RATIO

104 dB (+1.0 dBu, A-weighted)

THD+N

0.002%

PREAMP EIN

-128 dBu (max gain, 150 Ω source, A-weighted)

MAX INPUT LEVEL

+1.5 dBu

GAIN RANGE

55 dB

Line Input

1-2 (balanced 1/4" [6.35 mm] TRS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.05 dB)

SIGNAL-TO-NOISE RATIO

101 dB (1 kHz, +4 dBu, A-weighted)

THD+N

0.002%

MAX INPUT LEVEL

16 dBu

GAIN RANGE

55 dB

Inst Input

1-2 (unbalanced 1/4" [6.35 mm] TS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.05 dB)

DYNAMIC RANGE

100 dB (A-weighted)

SIGNAL-TO-NOISE RATIO

98 dB (+ 4 dBu, A-weighted)

THD+N

0.005%

MAX INPUT LEVEL

6 dBu

INPUT IMPEDANCE

1 MΩ

GAIN RANGE

24 dB

Main Outputs

L and R (balanced, differential 1/4" [6.35 mm] TRS)

FREQUENCY RESPONSE

20 Hz – 20 kHz (+0.06 dB)

DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO

106 dB (A-weighted)

THD+N

0.005%

MAX OUTPUT LEVEL

+7 dBu (1 kHz, -1 dBFS)

Headphone Output

(impedance-balanced 1/4” [6.35 mm] TRS)

THD+N

0.005%

OUTPUT IMPEDANCE

10 Ω

General

POWER

USB-bus-powered

DIMENSIONS (WIDTH X DEPTH X HEIGHT)

8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)

WEIGHT

2.1 lbs. 0.95 kg
