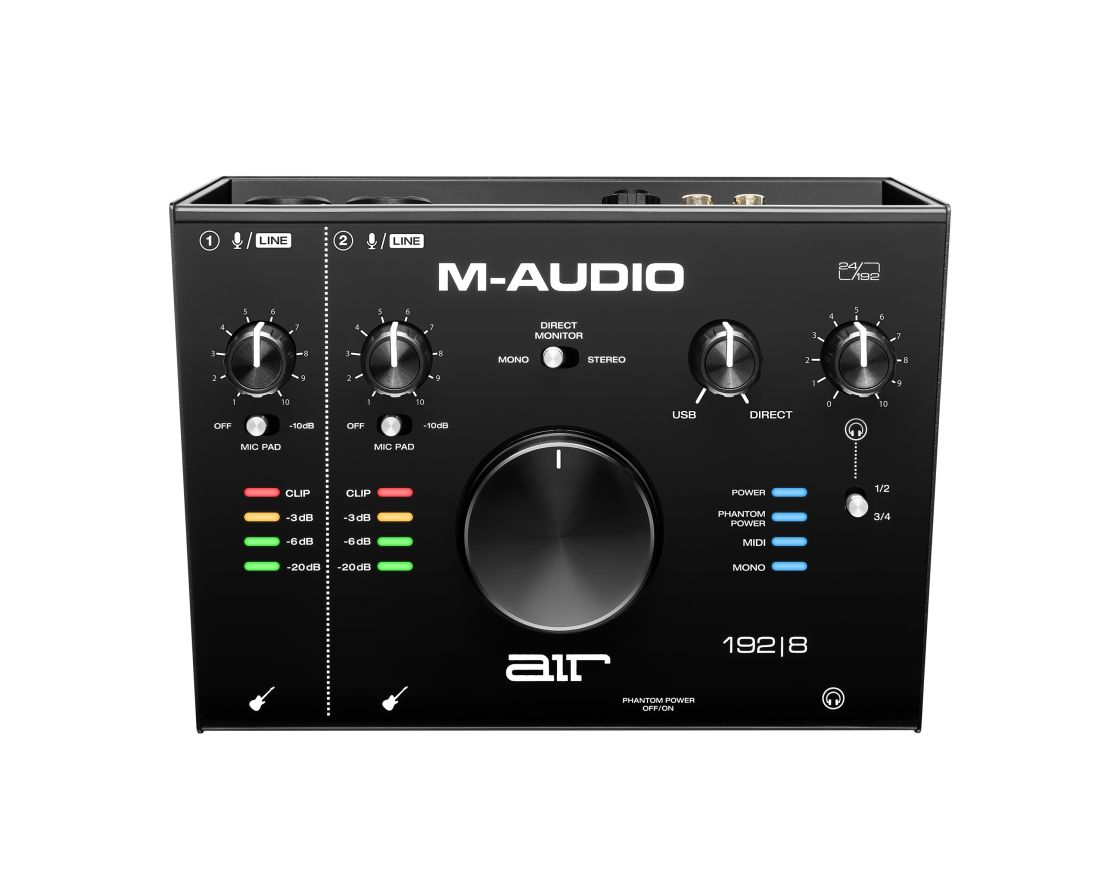

M-Audio AIR 192 I 8
Cena:
19.900,00 RSD
Redovna cena:
23.600,00 RSD
Key Features
24-bit/192kHz resolution for professional recording and monitoring
Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
VU LED meters for dialing in the perfect level
Flexible inputs: (2) XLR+¼” TRS combo with -10dB mic pad or ¼” instrument inputs
Use any combination of TRS combo or ¼” instrument input on the two channels:(2) TRS, (2) instrument or (1) of each
MIDI input/output for connecting virtually any external MIDI gear
Stereo ¼” and RCA outs with direct mono/stereo switch
(2) RCA assignable auxiliary outputs; ¼” headphone output with independent source and level controls
Rugged metal chassis; large central control for easy volume adjustment
USB/Direct knob for balancing between the input signal and the computer signal
*Round trip latency is dependent on buffer settings, and computer hardware
Dodatne informacije
| Proizvođač |
M-Audio |
| Specifikacija |
|
Mic Input
|
1-2 (balanced XLR)
|
|
FREQUENCY RESPONSE
|
20Hz – 20kHz (+/-0.1 dB)
|
|
DYNAMIC RANGE
|
104 dB (A-weighted)
|
|
SIGNAL-TO-NOISE RATIO
|
104 dB (+1.0 dBu, A-weighted)
|
|
THD+N
|
0.001% (1kHz, +0.8dBu, -1dBFS)
|
|
PREAMP EIN
|
-126dBu (150Ω, unweighted)
|
|
MAX INPUT LEVEL
|
+1.8dBu
|
|
GAIN RANGE
|
60dB
|
|
Line Input
|
1-2 (balanced 1/4" TRS)
|
|
FREQUENCY RESPONSE
|
20Hz – 20kHz (+/-0.1dB)
|
|
SIGNAL-TO-NOISE RATIO
|
101dB (1kHz, +4dBu, A-weighted)
|
|
THD+N
|
0.002% (1kHz, +19.7dBu, -1dBFS)
|
|
MAX INPUT LEVEL
|
+20.7dBu
|
|
GAIN RANGE
|
55 dB
|
|
Inst Input
|
1-2 (unbalanced 1/4" TS)
|
|
FREQUENCY RESPONSE
|
20Hz – 20kHz (+/-0.1dB)
|
|
DYNAMIC RANGE
|
106dB (A-weighted)
|
|
SIGNAL-TO-NOISE RATIO
|
98dB (+4dBu, A-weighted)
|
|
THD+N
|
0.001% (1kHz, +5.8dBu, -1dBFS)
|
|
MAX INPUT LEVEL
|
+6.8dBu
|
|
INPUT IMPEDANCE
|
~1MΩ
|
|
GAIN RANGE
|
24dB
|
|
Main TRS Outputs
|
1/L & 2/R (balanced 1/4" TRS)
|
|
FREQUENCY RESPONSE
|
20Hz – 20kHz (+/-0.1dB)
|
|
DYNAMIC RANGE
|
109dB (A-weighted)
|
|
THD+N
|
0.003% (1kHz, -1dBFS)
|
|
MAX OUTPUT LEVEL
|
+13dBu
|
|
Main & Aux RCA Outputs
|
1 - 4 (Unbalanced RCA)
|
|
FREQUENCY RESPONSE
|
20Hz - 20kHz (+/-0.1dB)
|
|
DYNAMIC RANGE
|
109dB (A-weighted)
|
|
THD+N
|
0.003% (1kHz, -1dBFS)
|
|
MAX OUTPUT
|
+7dBu
|
|
Headphone Outputs
|
(Stereo 1/4" TRS)
|
|
DYNAMIC RANGE
|
101dB
|
|
THD+N
|
0.008% (1kHz, -1dBFS, 36mW)
|
|
MAX POWER
|
36mW (32-ohm load)
|
|
MIN IMPEDANCE
|
32-ohm
|
|
