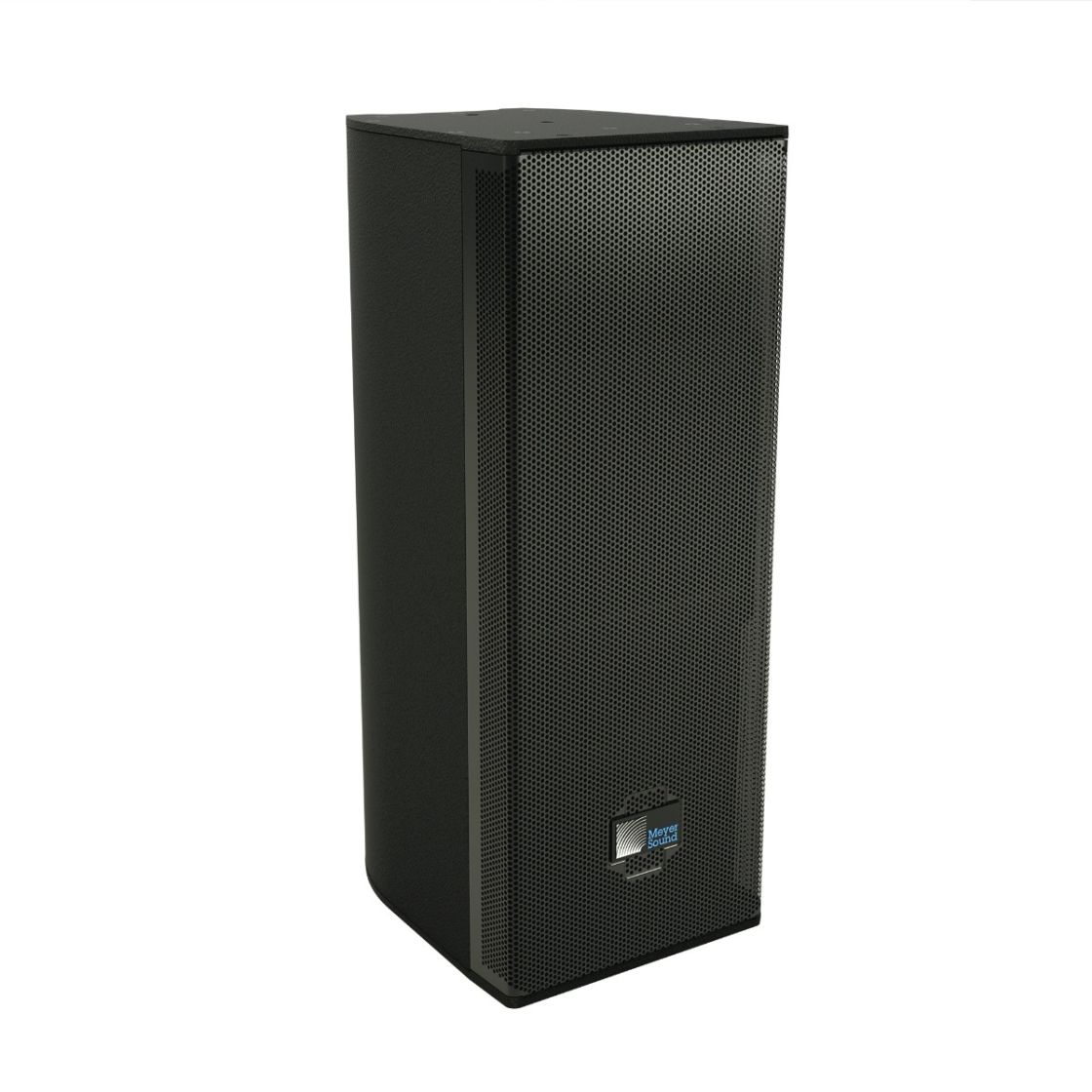

Zvučnik ULTRA-X22™ kompanije Meyer Sound proširuje naprednu tehnologiju tačke izvora iz modela ULTRA-X40™ u manji, kompaktni dizajn. Pruža visoku izlaznu snagu, niska izobličenja i konzistentan polarni odgovor u ventilisanom kućištu. Opremljen sa dva niskofrekventna drajvera sa konusom prečnika 5 inča i kompresionim drajverom sa dijafragmom prečnika 2 inča sa rotirajućim horn-om od 80° x 50° sa konstantnim Q, ULTRA-X22 pruža izuzetne audio performanse za primene u kojima su veličina i težina kritični.
Linear Peak SPL: 128.5 dB with 20 dB crest factor (M-noise), 123.5 dB (Pink Noise), 125 dB (B-noise)
Coverage:
Rotatable horn: 80° x 50°
Crossover: 830 Hz
Transducers:
Low Frequency: Two 5-inch cone drivers; 6 Ω nominal impedance
High Frequency: One 2-inch diaphragm compression driver connected to a rotatable horn; 8 Ω nominal impedance
Audio Input:
Analog Audion Version:
Type: Differential, electronically balanced
Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection
Connectors: XLR 3-pin female input with male loop output.
Input Impedance: 10 kΩ differential between pins 2 and 3
Wiring:
Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
Pin 2: Signal +
Pin 3: Signal -
Case: Earth ground and chassis
Nominal Input Sensitivity: 0.0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
Input Level: Audio source must be capable of producing +20 dBV (10 V rms, 14 V peak) into 600 oms to produce the maximum peak SPL over the operating bandwidth of the loudspeaker
Amplifier:
Type: Three-channel, Class-D
Total Output Power: 860 W peak
THD, IM, TIM: < 0.02%
Cooling: Convection
AC Power:
Connectors: powerCON 20 input with loop output; powerCON TRUE1 TOP with loop output on digital and weather-protected units
Automatic Voltage Selection: 90–265 V AC, 50–60 Hz
Safety Rated Voltage Range: 100–240 V AC, 50–60 Hz
Turn-on and Turn-off Points: 90 V AC turn-on, no turn-off; internal fuse protection above 265 V AC
Current Draw:
Idle Current: 0.15 A rms (115 V AC); 0.13 A rms (230 V AC); 0.16 A rms (100 V AC)
Maximum Long-Term Continuous Current (>10 sec): 0.9 A rms (115 V AC); 0.5 A rms (230 V AC); 1.1 A rms (100 V AC)
Burst Current (
Maximum Instantaneous Peak Current: 3.5 A peak (115 V AC); 1.8 A peak (230 V AC); 4.1 A peak (100 V AC)
Inrush Current: < 20 A peak
Physical:
Dimensions: W: 7.44 in (189 mm) x H: 19.04 in (484 mm) x D: 8.66 in (220 mm)
Weight: 27 lb (12.3 kg)
Enclosure: Aluminum with slightly textured black finish
Two integrated M8 threaded points on each end; optional accessories for various rigging options (see accessories section); four M6 threaded holes with 5-inch by 2.75-inch (127 mm by 70 mm) hole pattern on the rear for use with third-party wall mounts.
