Name: Meyer Sound ULTRA-X80
Brand: Meyer Sound
SKU: ULTRA-X80
Availability: OutOfStock

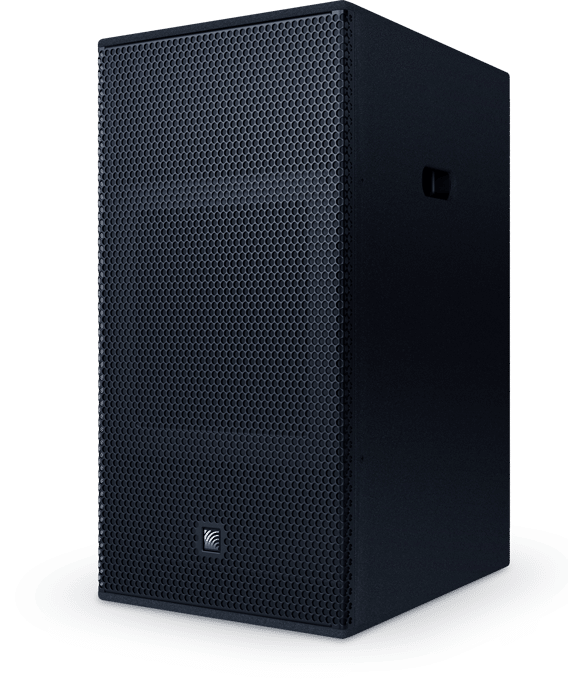

Zvučnik Meyer Sound ULTRA-X80 pruža snažno, kompaktno ozvučenje uz prepoznatljivu jasnoću i performanse karakteristične za Meyer Sound, sve u laganom i svestranom dizajnu. Idealan je za male i srednje prostore, live zvuk, AV prezentacije i instalacione primene. ULTRA-X80 se lako prilagođava različitim konfiguracijama, uz isporuku doslednog, visokofidelitetnog zvuka

Dodatne informacije

Proizvođač

Meyer Sound

Specifikacija

ACOUSTICAL¹	ULTRA-X80	ULTRA-X82
Operating Frequency Range	55 Hz - 18 kHz, ±6 dB
AES75 Maximum Linear Sound Levels²	122 dBZ, 140 dBZpk, 119.6 dBA, with an RMS input level of +3.0 dBV, 50º C	123 dBZ, 141 dBZpk, 121 dBA, with an RMS input level of +3.0 dBV, 50º C
COVERAGE
Horizontal Coverage	95°	50°
Vertical Coverage	40°	40°
TRANSDUCERS
Low Frequency	Two 12-inch long-excursion cone drivers
High Frequency	One 4-inch diaphragm compression driver connected to a rotatable horn
PHYSICAL
Weight	62.6 kg (138 lb)
Enclosure	Premium multi-ply birch, slightly textured black finish. The Outdoor Temporary (OT) version includes additional treatment of the cabinet wood.
Protective Grille	Powder-coated, stamped steel. The OT version also includes stainless steel mesh behind the grille.
Rigging	M8 x 1.25 mm accessory attachment points, six on bottom, six on top
IEC Ingress Protection Rating (IP Rating)	The OT version is IP55 rated, when connected to cables terminated with Neutrik TOP connectors
AC POWER
Connector	Neutrik powerCON TRUE1 TOP (True Outdoor Protection)
Operating Voltage Range	200 – 240 V AC, 50 or 60 Hz
POWER CONSUMPTION
Max Long-Term Continuous Power (>10 sec)	900 W
Burst Power (<1 sec)	2400 W
Idle Power	55 W
ANALOG AUDIO INPUT³
Connector	Neutrik XLR 3-pin TOP (True Outdoor Protection) female input with male loop output.
Input Level	Source must be capable of producing +24 dBU into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
DIGITAL AUDIO INPUT³
Connector	Neutrik etherCON TOP (True Outdoor Protection)
Digital Format	AVB, Milan Certified
MONITORING
Telemetry	Loudspeaker telemetry transmitted via the Ethernet port, displayed in software
