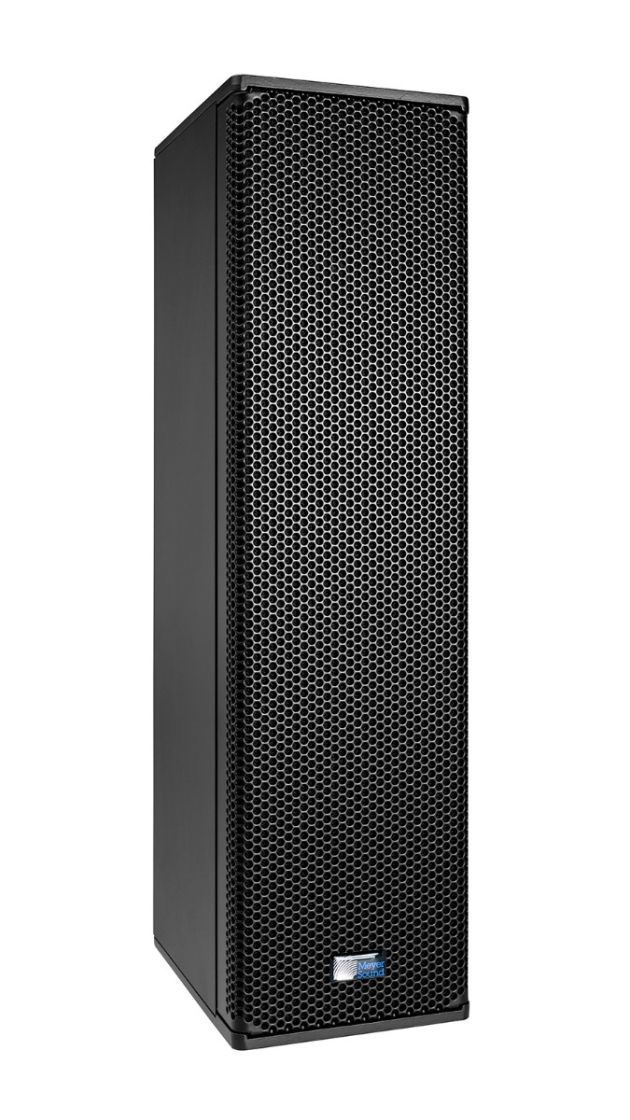

Meyer Sound je predstavio UP-4slim ultrakompaktni instalacioni zvučnik, vitko novo rešenje za primene koje zahtevaju besprekornu performansu i izuzetan odnos snage i veličine uz elegantan dizajn. UP-4slim koristi ekskluzivnu IntelligentDC tehnologiju kompanije Meyer Sound, integrišući inferentne zvučne prednosti samostalno napajanih zvučnika sa jednostavnošću instalacije niskonaponskih sistema. Ovo je prvi IntelligentDC višepojasni zvučnik koji je smešten u potpuno aluminijumski okvir.
Linear Peak SPL4: 116.5 dB with crest factor >16.5 dB (M-noise), 109.5 dB (Pink noise), 112.5 dB (B-noise)
COVERAGE
Horizontal Coverage: 100°
Vertical Coverage: 100°
TRANSDUCERS
Low Frequency: Two 8-inch cone drivers; 4 Ω nominal impedance
High Frequency: One 1-inch metal dome tweeter; 8 Ω nominal impedance
AUDIO INPUT
Type: Differential, electronically balanced
Maximum Common Mode Range: ±15 V DC
Connectors: Phoenix 5-pin male
Input Impedance: 10 kΩ differential between pins 2 and 3
Wiring:
Pin 1: DC Power (-)
Pin 2: DC Power (+)
Pin 3: Audio Shield, Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
Pin 4: Audio (-)
Pin 5: Audio (+)
Nominal Input Sensitivity: -2.0 dBV (0.8 V rms) continuous is typically the onset of limiting for noise and music
Input Level: Audio source must be capable of producing of +16 dBV (6.31 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
AMPLIFIER
Type: 3-channel, Class-D with integral advanced digital signal processing
Total Output Power5: 500 W peak
THD, IM, TIM: <0.02%
Cooling: Convection
DC POWER
Connector: Phoenix 5-pin male provides power and audio connection (see Wiring above)
Safety Agencyn Rated Voltage Range6: 48 V DC (Meyer Sound IntelligentDC External Power Supply Required)
DC CURRENT DRAW7
Idle Current: 0.23 A average
Maximum Long-Term Continuous Current (>10 sec): 1.00 A average
Maximum Instantaneous Peak Current: 4.5 A peak
PHYSICAL
Dimensions: W: 4.29 in (109 mm) x H: 15.90 in (404 mm) x D: 5.69 in (144 mm)
Weight: 14 lb (6.35 kg)
Enclosure: Aluminum with slightly textured black finish
Protective Grille: Powder-coated, stamped steel with black mesh
Rigging: Top and bottom aluminum plates with M8 threads
