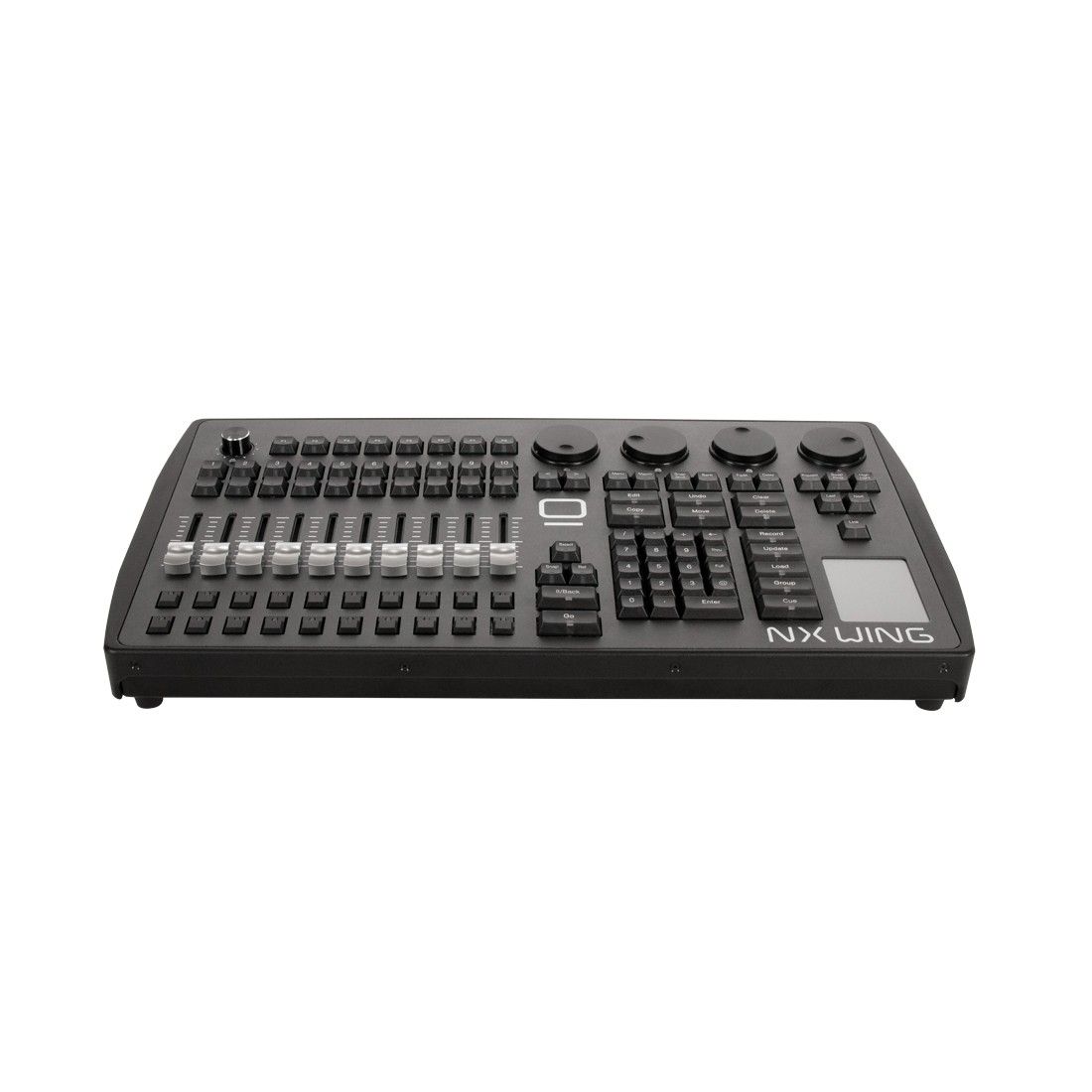

Obsidian NX Wing

USB kontrolna površina za Obsidian Control System

Pozvati za cenu

Povremeno na lageru, proverite dostupnost

PDV uračunat u cenu i nema skrivenih troškova

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX Wing provides a responsive professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly. NX Wing provides extensive connectivity with 4 DMX Ports, MIDI and Timecode ports while unlocking 128 Universes of control when connected to ONYX on a PC.

Dodatne informacije
Proizvođač Obsidian
Garancija 2
Specifikacija

Control Surface

10x 60 mm playback faders, each with 8 x customizable multi-function keys

Playback Select button

Master Go section with Go, Pause, Snap and Release

4x digital rotary encoders with push function and status LED for fixture parameter control

3.5” RGB touchscreen for parameter groups, effect parameters, fanning and global timings

Grand master rotary fader and button

Blind/Highlight/Last/Next buttons

Full numerical keypad and command keys



Hardware



Control / connections

4x DMX / RDM Universe In/Out: 5-pin locking XLR

MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5pin DIN

SMPTE Timecode In/Out: 3-pin XLR

12 VDC power supply input: 4-pin XLR

Desk lamp: XLR 12V

USB In: USB 2.0 B

Size

LxWxH   300x540x99mm

Weight

4,6 kg

Included items

RGB LED desk lamp, angular XLR connector, 13"

Dust Cover

USB Cable

External PSU (12V 11A)

1.5 m power cable, 3-pin IEC to Schuko

Electrical

12VDC 11A

132 W maksimalno opterećenje

-10° do 45°
