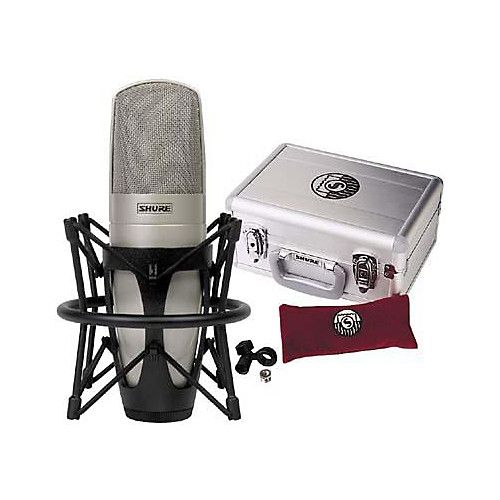

Shure KSM32-SL

Kondenzatorski mikrofon
94.900,00 RSD
Povremeno na lageru, proverite dostupnost

PDV uračunat u cenu i nema skrivenih troškova

Class A, transformerless preamplifier circuitry eliminates cross-over distortion for improved linearity across the full frequency range. Embossed, high-compliance diaphragm provides extended low-frequency response. Ultra-thin, gold-layered, low-mass, Mylar® diaphragm for excellent transient response 15 dB attenuation switch for handling extremely high sound pressure levels (SPL) Switchable low-frequency filter provides greater flexibility to reduce background noise or to counteract proximity effect. Integrated three-stage pop protection grille reduces "pop" and other breath noise Internal shock mount reduces transmission of handling noise Replacement cartridge: RK374 Performance Characteristics Extended frequency response Very low self-noise Exceptional low-frequency reproduction High output level High input SPL capability No cross-over distortion Extremely uniform polar response Superior common mode rejection and suppression of radio frequency interference Applications Some typical applications for the KSM32 are listed below. Microphone use, however, is a matter of personal taste. The KSM32 may be used for a variety of applications other than those listed. Voice -- solo, background, voice-over, broadcasting Acoustic instruments -- such as piano, guitar, drums, percussion, strings Wind instruments -- brass and woodwind Low frequency instruments -- such as double bass, electric bass, kick drum Overhead miking -- drums or percussion Ensembles -- choral or orchestral Room ambiance pick-up -- guitar amplifier or drums Both the acoustic environment and microphone placement have significant effects on the sound obtained when miking a source. You may need to experiment with these variables to achieve the best overall sound for each application.
Dodatne informacije
Proizvođač Shure
Garancija 2
Specifikacija Cartridge Type Permanently-biased Condenser Frequency Response 20 to 20,000 Hz Directional Polar Pattern Cardioid Output Impedance 150 ohms (actual) Attenuation Switch 0 or -15 dB attenuation Low Frequency response switch flat -6 db/octave below 115 Hz -18 dB/octave below 80 Hz Phantom Power 48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3 Current Drain 4.65 mA typical at 48 Vdc Common Mode Rejection > 50 dB, 20 Hz to 20 kHz Polarity Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3 Dimensions and Weight 55.9 mm (2.20 in.) maximum body diameter, 187 mm (7.37 in.) long 490 grams (17.3 oz.) Sensitivity (typical, at 1000 Hz; 1 Pa = 94 dB SPL) -36 dBV/Pa (16 mV) Self-noise (typical, equivalent SPL; A-weighted, IEC 651) 13 dB Maximum SPL at 1000 Hz 139 (154) dB 133 (148) dB Output Clipping Level* 2500 ohm load (Attenuator on): 9 dBV 1000 ohm load (Attenuator on): 3 dBV *20 Hz to 20 kHz; THD < 1%. THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL Dynamic Range 2500 ohm load: 126 dB 1000 ohm load: 119 dB Signal to Noise ratio** 81 dB **S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise, A-weighted Total Harmonic Distortion (THD), 2500 ohm load <0.08% for a 120 dB equivalent SPL input
