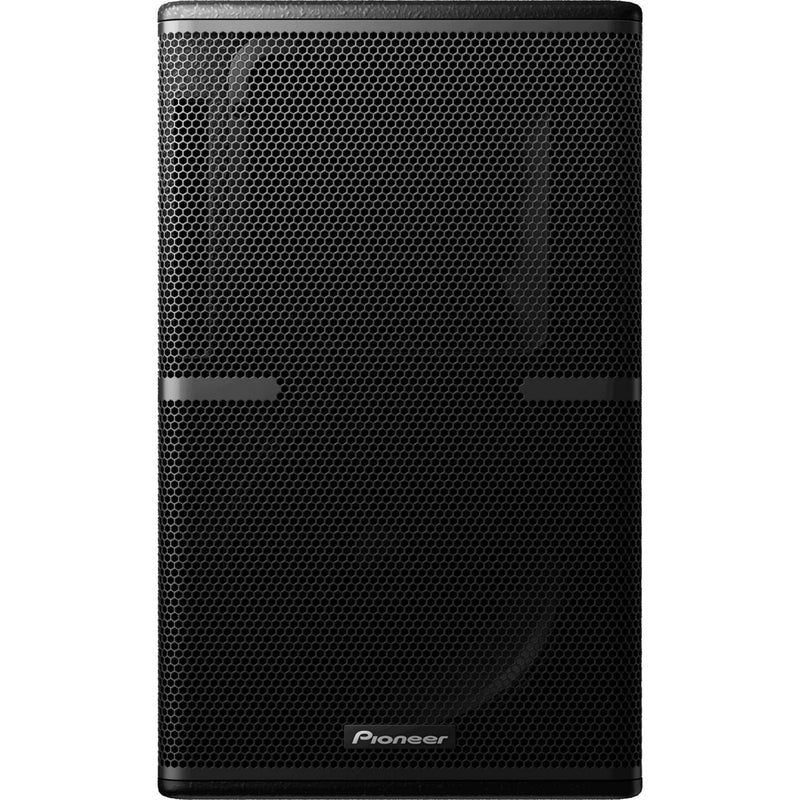

Name: Pioneer XY-122
Brand: Pioneer
SKU: XY-122
Price: 141600 RSD
Availability: OutOfStock

Two-way full range speaker with 12-inch LF driver and a 1.4-inch compression driver.

Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments.

Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation.

Designed for fixed and mobile applications, with a wide array of flying options.

Features top hats for quick set-up.

NL4 INPUT and LINK OUT connections as standard.

Robust enclosure made from premium multi-laminate birch plywood.

Impact resistant textured paint finish.

Proizvođač

Pioneer

Garancija

2

Specifikacija

Enclosure Type	Two-way passive, reflex-loaded
Frequency Response	70 Hz to 20 kHz
Sensitivity (1 W/1 m)	101 dB
Nominal Impedance	8 Ω
Power Handling	400 W RMS, 800 W Program
Maximum SPL	127 dB cont., 133 dB peak
Dispersion	90 °H × 60 °V, Rotatable
Driver Configuration	12 inch (320 mm) neodymium LF cone driver 1.4-inch (36 mm) exit neodymium HF compression driver
Crossover	Asymmetric internal passive crossover
Connectors	2 × Neutrik SpeakON™ NL4
Dimensions (W×H×D)	380 × 622 × 360 mm (15 × 24.5 × 14.2-inch)
Weight	23 kg (50.7 lbs)
Rigging aRnd Hardware	8 × M10 threaded mounting points (4 top/4 bottom), 2 × M10 threaded mounting points on rear, 4 × M10 threaded mounting points on side (2 left/2 right), 4 × M8 threaded points on rear (for wall mount bracket), 1 × flush handle on rear, 1 × 35 mm polemount socket
Grille	Hex punched steel
Enclosure	15 mm (0.6-inch) birch plywood
Finish	Impact-resistant, Black semi-matt textured
Suggested Power Amplifier	Recommended : K3DSP Minimum : M30DHDSP
Accessories	polemount socket cover (-W model only)
