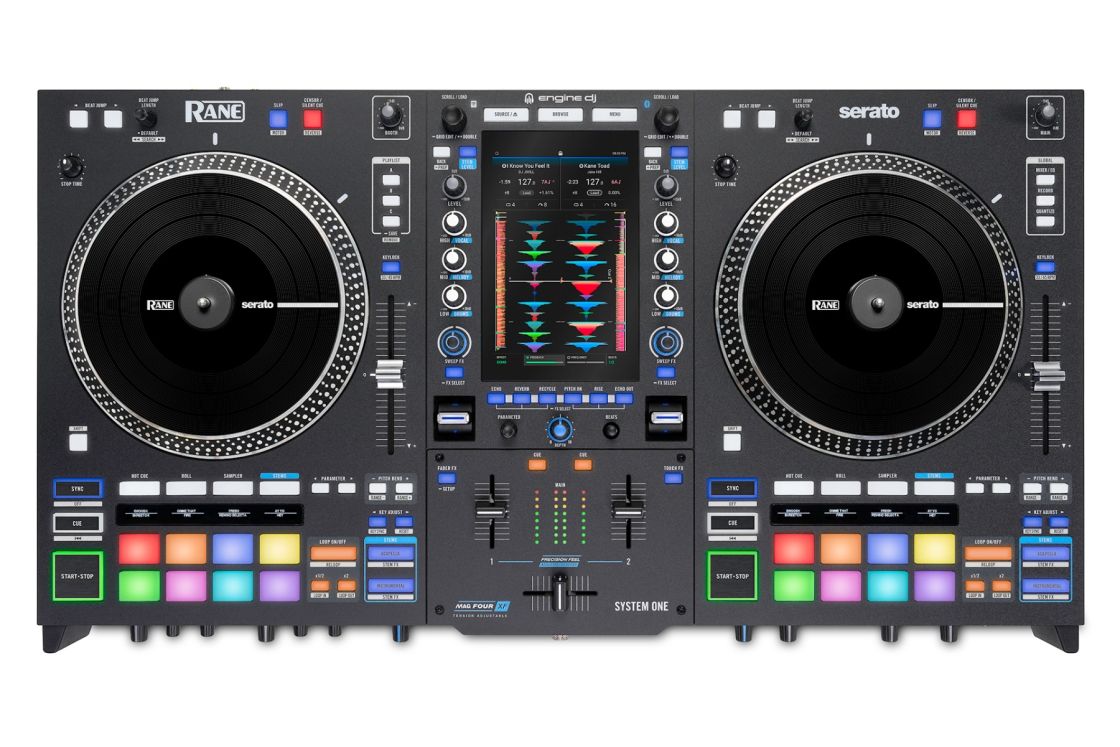

Rane - System One

Digital Audio

• Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz

• Digital Signal Processing: 32-bit, Floating Point, Double Precision

Audio Outputs

Main Output (XLR, RCA stereo pair)

• DAC:24-bit
• Dynamic Range:117 dB
• Output Type:Balanced XLR
• Max Output Level (XLR):8 Vrms
• Max Output Level (RCA):4 Vrms
• Frequency Response:20 Hz–20 kHz: +0, -1 dB
• THD+N:002% @ 1 kHz, 4 Vrms
• Channel Separation:> 80 dB
• Input Gain Trim Range:Off to +12 dB
• Output Level Range:Off to 0 dB

Booth Output (1/4” [6.35 mm] TRS)

• DAC:24-bit
• Dynamic Range:117 dB
• Output Type:Balanced TRS
• Max Output Level:8 Vrms
• Frequency Response:20 Hz – 20 kHz: +0, -1 dB
• THD+N:002% @ 1 kHz, 4 Vrms
• Channel Separation:> 80 dB
• Input Gain Trim Range:Off to +12 dB
• Output Level Range:Off to 0 dB

Headphone Output (1/4” [6.35 mm] and 1/8” [3.5 mm] TRS)

• DAC:24-bit
• Dynamic Range:117 dB
• Output Type:Stereo TRS (1/8” and 1/4” jacks)
• Cue Features:Cue / Split Cue
• Max Output Level (No Load):4 Vrms
• Max Power Output @ 50 Ω:150 mW
• Frequency Response:20 Hz – 20 kHz: +0, -1 dB
• THD+N @ 1 kHz, 4 Vrms (No Load):002%
• THD+N @ 1 kHz, Full Power @ 50 Ω:08%
• Channel Separation:> 80 dB
• Level Control Range:Off to 0 dB

Inputs (Combo XLR/1/4” [6.35 mm] TRS)

• ADC: 24-bit, 115 dB DR

• Input Type: Balanced XLR/TRS combo

• Max Input Level: 110 mV

• Analog Gain: 25 dB

• Max System Gain: 60 dB

• Frequency Response @ 20 Hz: -2.5 dB

• Frequency Response @ 20 kHz: -5 dB

• THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz–20 kHz)

• DR (A-weighted), Gain = 25 dB: 102 dB

• DR (A-weighted), Gain = 60 dB: 72 dB

• IRN (A-weighted), Gain = 60 dB: -132 dB

• IRN (20 Hz–20 kHz), Gain = 60 dB: -130 dB

Auxiliary Input (RCA stereo pair)

• ADC:24-bit, 115 dB DR (A-weighted)
• Input Type:Unbalanced RCA
• Max Input Level:4 Vrms
• Frequency Response:20 Hz –20 kHz: +0, -1 dB
• THD+N @ 3 Vrms, Unity Gain:005% (20 Hz–20 kHz)
• Gain Range:Off to +12 dB
• DR (A-weighted), Unity Gain:108 dB
• Crosstalk:≤ -90 dB

Performance Pads

• Pads: 16 total, on/off multi-color back-lit (8 per deck)

Faders

• Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse

• Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse

Displays

• Main Display: 7"/178 mm (diagonal) full-color LED-backlit display with touch interface

• Pad Displays: (8) 128 x 32 monochrome OLEDs

CPU

• Processor: Quad-core ARM®

• RAM: 4 GB

Wi-Fi & Bluetooth

• Wi-Fi:

• 4GHz/5GHz
• 11a/b/g/n/ac
• Wi-Fi 5

• Bluetooth: v5.4

Supported Media

File Systems

• exFAT (recommended)
• FAT32

Playable Formats

• AAC/M4A
• AIF/AIFF (44.1–192 kHz, 16–32-bit)
• ALAC
• FLAC
• MP3 (32–320 kbps)
• MP4
• Ogg Vorbis
• WAV (44.1–192 kHz, 16–32-bit)

Streaming Services

• Onboard Streaming Services (subscription required)

• Amazon Music Unlimited
• Apple Music
• Beatport
• Beatsource
• SoundCloud Go+
• TIDAL

Lighting

• Onboard Smart Lighting

• Philips Hue
• Nanoleaf

• Supported DMX

• SoundSwitch DMX Micro
• SoundSwitch Control One

Power (Internal with locking IEC)

• Input Type: Locking IEC

• Input Voltage: 100–240 VAC

• Frequency: 50/60 Hz

• Power Consumption: 150 W

General

• Dimensions (W x D x H):

• Inches: 29.00 x 15.87 x 5.70
• Centimeters: 73.66 x 40.30 x 14.47

• Weight:

• 4 lbs (13.33 kg)

Connections

Inputs

• Microphones:
• Mic 1: XLR + 1/4” Combo Jack
• Mic 2: XLR + 1/4” Combo Jack
• Aux:Stereo Pair (RCA)

Outputs

• Main:(2) XLR, Stereo Pair (RCA)
• Booth:(2) 1/4” TRS Jacks
• Headphones:
• 1/4” Stereo Jack
• 5-mm Stereo Mini-Jack

Media Inputs

• USB:
• USB 1: Type-A, USB 2.0 High Speed
• USB 2: Type-C, USB 3.0 SuperSpeed
• USB 3: Type-A, USB 3.0 SuperSpeed
• USB 4: Type-A, USB 3.0 SuperSpeed
• USB to Computer: Type-C, USB 3.0 SuperSpeed
• SD Media:SD, SDHC, SDXC
• Internal HD:SATA 3.0

Power

• Input: Locking IEC
