Void Air Motion

Trosistemski bi-amp skulpturirani zvučnički niz

Pozvati za cenu

Povremeno na lageru, proverite dostupnost

PDV uračunat u cenu i nema skrivenih troškova

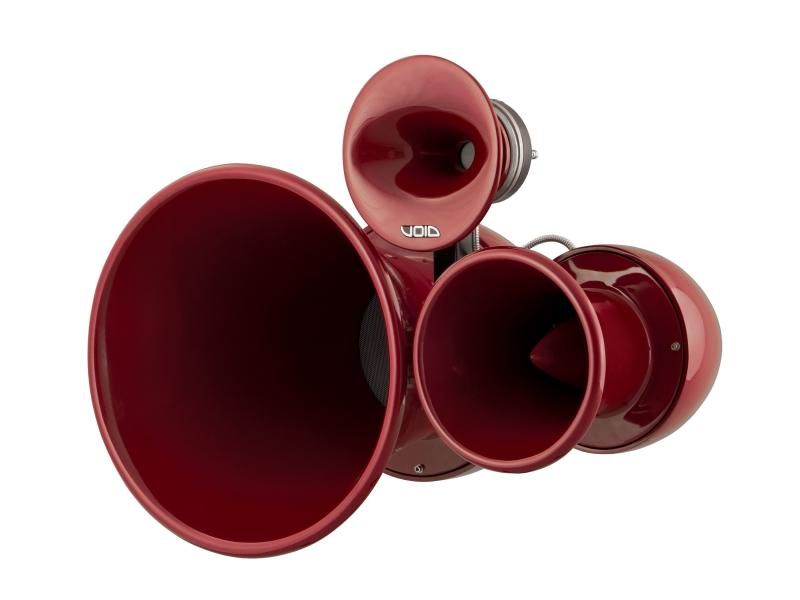

The revolutionary Air Motion sculpted loudspeaker array is comprised of three optimally-designed transducers, each loaded by an isometric conical horn and housed in a skeletonised format, free from restricting and potentially resonant enclosures. Harnessing the excellent inherent sound quality of the conical horn, the propagation is based on the spheroid section and allows for solid radiation angles. The benefits are twofold: tight beam width control, giving higher output; and more defined sound quality, due to a decrease in early reflections. Constant directivity is achieved across the horns’ entire dispersion, allowing for an exceptionally balanced waveform transmission.

Air Motion harnesses the excellent inherent sound quality of the conical horn.

Dodatne informacije
Proizvođač Void Acoustic
Garancija 2
Specifikacija
Frequency Response 140 Hz - 20 kHz ±3 dB
Efficiency LF: 106 dB 1w/1m, HMF: 108 dB 1w/1m
Crossover Points LF: 140 Hz and 600 Hz, HMF: 600 Hz - Passive 1.7 kHz
Impedance LF: 8 ohms, HMF: 8 ohms
Power Handling LF: 500 Watts AES, HMF: 250 Watts AES
Maximum Output 134 dB cont, 137 dB peak
Driver Configuration 1 x 12" LF, 1 x 8" MF, 1 x 1.5" HF compression driver
Dispersion 60°H x 50°V
Protection Internal Electronic Control
Connectors 2 x 4-pole speakON™ NL4
Height 672 mm (26.5")
Width 854 mm (33.6")
Depth 658 mm (25.9")
Weight 35.4 kg (78 lbs)
Enclosure Fibreglass composite
Rigging Integral mounting system
Colour Custom colours available
