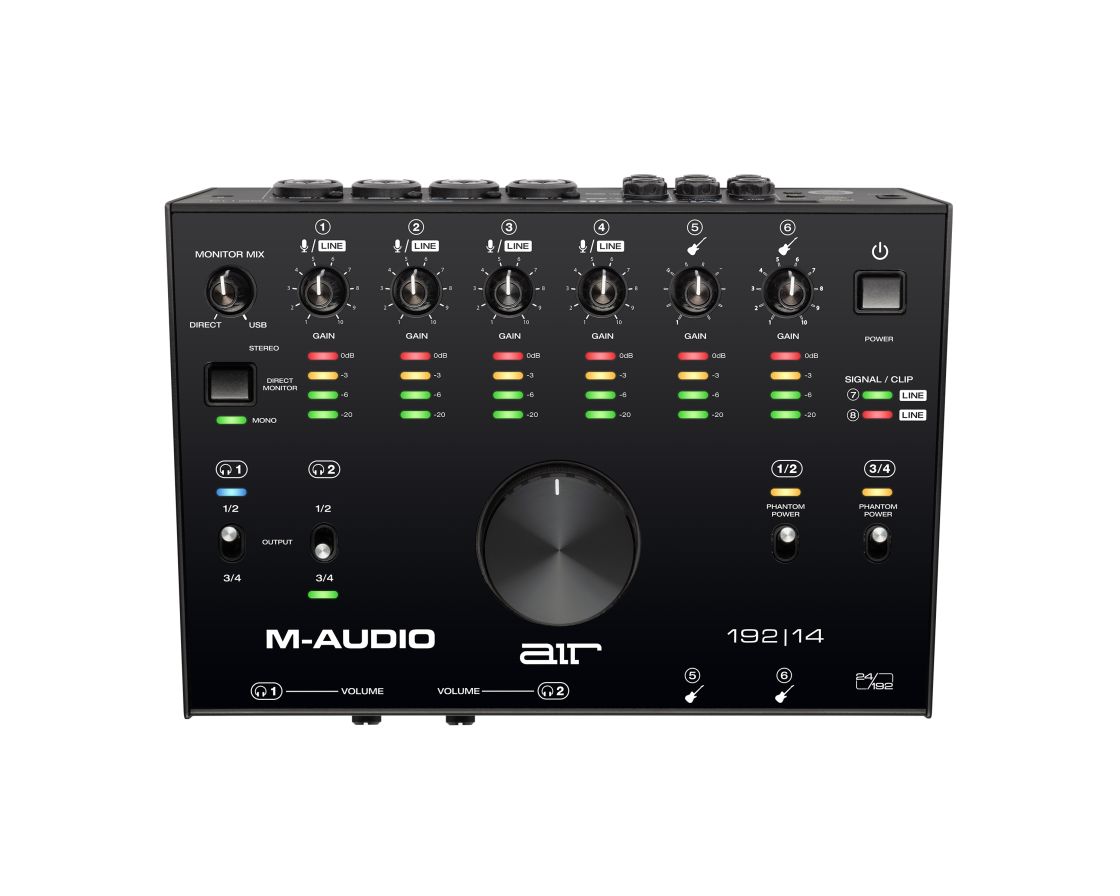

Key Features
24-bit/192kHz resolution for professional recording and monitoring
Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms*
Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
VU LED meters for dialing in the perfect level
(4) XLR+¼" TRS combo inputs, (2) ¼” instrument inputs and (2) ¼” line inputs
MIDI input/output for connecting virtually any external MIDI gear
Stereo ¼” with direct mono/stereo switch; (2) ¼” assignable auxiliary outs
(2) ¼” headphone outputs with independent source and level controls
Rugged metal chassis; large central control for easy volume adjustment
USB/Direct knob for balancing between the input signal and the computer signal
*Round trip latency is dependent on buffer settings, and computer hardware
Dodatne informacije
| Proizvođač |
M-Audio |
| Specifikacija |
|
Mic Input
|
1-4 (balanced XLR)
|
|
FREQUENCY RESPONSE
|
20 Hz – 20 kHz (+/-0.2 dB)
|
|
DYNAMIC RANGE
|
113 dB (A-weighted)
|
|
SIGNAL-TO-NOISE RATIO
|
104 dB (+1.0 dBu, A-weighted)
|
|
THD+N
|
0.003%
|
|
PREAMP EIN
|
-137 dBu (40 Ω source, A-weighted) -129 dBu (150 Ω source, unweighted)
|
|
MAX INPUT LEVEL
|
+14 dBu
|
|
GAIN RANGE
|
62 dB
|
|
Line Inputs
|
1-4 (balanced 1/4" [6.35 mm] TRS)
|
|
FREQUENCY RESPONSE
|
20 Hz – 20 kHz (+/-0.1 dB)
|
|
DYNAMIC RANGE
|
113 dB (A-weighted)
|
|
THD+N
|
0.001% (1 kHz, +4 dBu, -1 dBFS)
|
|
MAX INPUT LEVEL
|
+30 dBu
|
|
GAIN RANGE
|
61 dB
|
|
Inst Inputs
|
5-6 (unbalanced 1/4" [6.35 mm] TS)
|
|
FREQUENCY RESPONSE
|
20 Hz – 20 kHz (+/-0.1 dB)
|
|
DYNAMIC RANGE
|
110 dB (A-weighted)
|
|
THD+N
|
0.001% (1 kHz, +4 dBu, -1 dBFS)
|
|
MAX INPUT LEVEL
|
+16 dBu
|
|
INPUT IMPEDANCE
|
~1 MΩ
|
|
GAIN RANGE
|
59 dB
|
|
Fixed Line Inputs
|
7–8 (balanced 1/4" TRS)
|
|
DYNAMIC RANGE
|
1/L & 2/R (balanced 1/4" TRS)
|
|
FREQUENCY RESPONSE
|
20Hz – 20kHz (+/-0.1dB)
|
|
DYNAMIC RANGE
|
113 dB (A-weighted)
|
|
THD+N
|
0.001% (1 kHz, +4 dBu, -1 dBFS)
|
|
FREQUENCY RESPONSE
|
+13dBu
|
|
Main & Aux RCA Outputs
|
1 - 4 (Unbalanced RCA)
|
|
FREQUENCY RESPONSE
|
20 Hz – 20 kHz (+/-0.1 dB)
|
|
MAX INPUT LEVEL
|
+17 dBu
|
|
Line Outputs
|
1–2 (balanced 1/4" TRS)
|
|
DYNAMIC RANGE
|
112 dB (A-weighted)
|
|
THD+N
|
0.002% (1 kHz, -1 dBFS)
|
|
FREQUENCY RESPONSE
|
20 Hz – 20 kHz (+/-0.2 dB)
|
|
MAXIMUM OUTPUT LEVEL
|
+17 dBu
|
|
Fixed Line Output
|
3–4 (balanced 1/4" TRS)
|
|
DYNAMIC RANGE
|
113 dB (A-weighted)
|
|
THD+N
|
0.002% (1 kHz, -1 dBFS)
|
|
FREQUENCY RESPONSE
|
20 Hz – 20 kHz (+/-0.2 dB)
|
|
MAXIMUM OUTPUT LEVEL
|
+17 dBu
|
|
Headphone Outputs
|
(stereo 1/4")
|
|
DYNAMIC RANGE
|
111 dB (A-weighted, 32 Ω load)
|
|
THD+N
|
0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω load)
|
|
FREQUENCY RESPONSE
|
20 Hz – 20 kHz (+/-0.2 dB)
|
|
MAXIMUM POWER DELIVERED
|
160mW (<1% THD, 32 Ω load)
|
|
MAXIMUM OUTPUT LEVEL
|
+15 dBu (unloaded)
|
|
IMPEDANCE RANGE
|
32 Ω – 600 Ω
|
|
General
|
|
|
OTHER CONNECTORS
|
1) 1/8” (3.5 mm) MIDI input
(1) 1/8” (3.5 mm) MIDI output
(1) USB Type-C port
(1) Power adapter input
|
|
POWER ADAPTER
|
12 VAC, 2 A, center-positive (included)
|
|
DIMENSIONS (WIDTH X DEPTH X HEIGHT)
|
10.2" x 7.3" x 3.6" (25.9 x 18.6 x 9.1 cm)
|
|
WEIGHT
|
3.9 lbs. 1.8 kg
|
|
