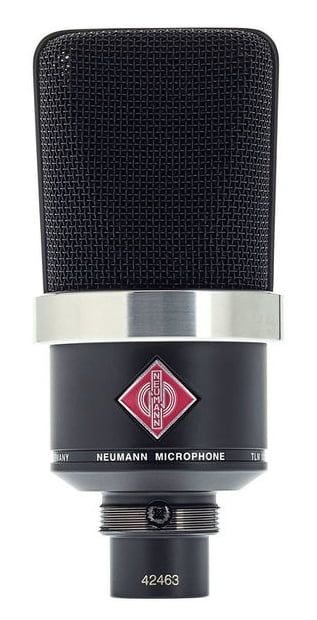

Neumann TLM 102 Studio Set

Studijski kondenzatorski mikrofon
Dostupno u:
Cena: 89.800,00 RSD Redovna cena: 99.365,00 RSD
Na stanju

PDV uračunat u cenu i nema skrivenih troškova

Styled in a black finish, TLM-102 Large Diaphragm Studio Condenser Microphone from Neumann is a large diaphragm condenser microphone operating in a cardioid polar pattern. It has the ability to withstand very high sound pressure levels.

The capsule, with its high SPL rating, permits the recording of percussion, drums, amplifiers, and other very loud sound sources. The microphone is equally capable when recording lower volume sounds due to its very fast transient response. However, its most important applications are in the realm of vocals and speech.

A slight boost above 6 kHz provides great vocal presence, while below 6 kHz the frequency response is extremely linear for minimal coloration and a clearly defined bass range. The capsule has an elastic suspension for minimizing structure-borne noise, while an integrated pop screen in the grille aids in suppressing plosives in vocal and speech recording.

Large-diaphragm microphone with cardioid directional characteristic
Pressure gradient transducer
Compact, smaller-scale body
Very high maximum sound pressure level (SPL)
Slight presence boost above 6 kHz
Transformerless circuitry
Dodatne informacije
Proizvođač Neumann
Garancija 2
Specifikacija

Acoustical operating principle:

Pressure gradient transducer



Directional pattern

Cardioid



Frequency range

20 Hz ... 20 kHz



Sensitivity at 1 kHz into 1 kohm

11 mV/Pa



Rated impedance

50 ohms



Rated load impedance

1 kohms



Equivalent noise level, CCIR1

21 dB

Equivalent noise level, A-weighted1

12 dB-A



Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)

73 dB



Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)

82 dB



Maximum SPL for THD 0.5%2

144 dB



Maximum output voltage

13 dBu



Supply voltage (P48, IEC 61938)

48 V ± 4 V



Current consumption (P48, IEC 61938)

3.5 mA



Matching connector

XLR3F



Diameter

52 mm



Length

116 mm
